Foundry Furnace

The structure used to melt the casting material is called a furnace or cupola. Since I only use the low melting point materials (Aluminum, Pot Metal and Lead), I can use my forges to melt the material in iron crucibles. A propane burner (crab cooker) could probably also be used. If the higher temperature materials are to be melted then a special refractory furnace should be constructed as described in the references.
Picture Picture

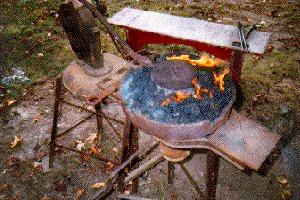

Small iron crucible in forge. Aluminum melt ready to pour.
Be extremely carefull when pouring. The melt is very unforgiving.
Wear a long leather apron and good thick leather shoes. No Nikes here!!!
Picture Picture

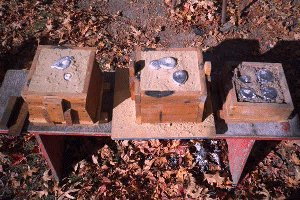

Molds ready to pour. Note hold-down weights Molds after pouring
The flask on the right is for leftover melt after pouring. NEVER run out of melt when pouring.

Other Foundry Links
